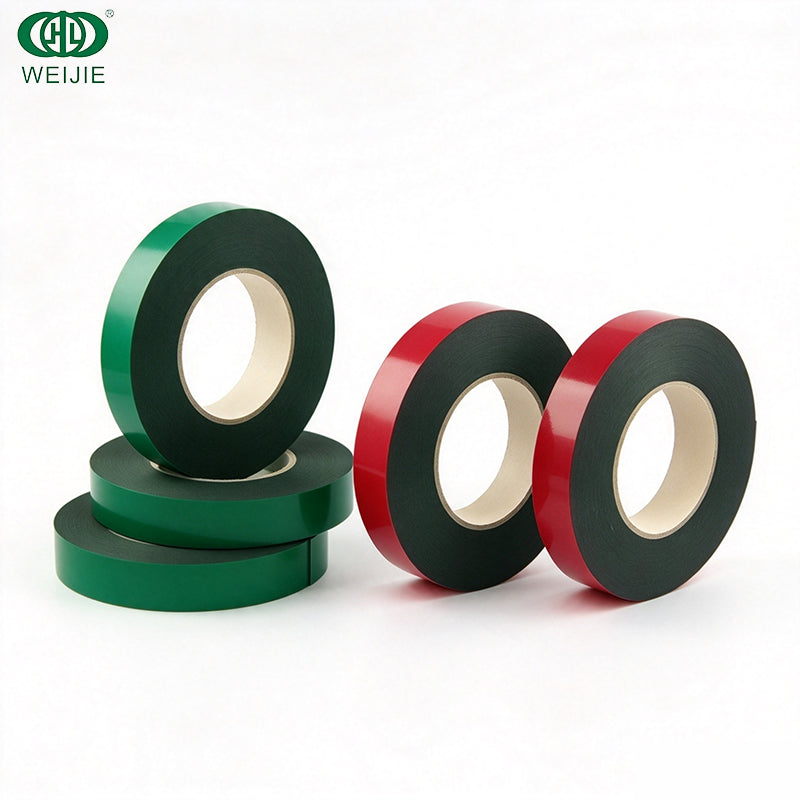

PE Foam Tape is closed cell, cross-linked polyethylene (PE) foam coated on both sides with a high-performance acrylic adhesive, and covered with releasing film or paper. The acrylic adhesive system is strong enough for outdoor applications due to its higher temperature, UV, weather, chemical and plasticizer resistance. Our foam tape is permanent and designed to have exceptional durability in demanding environments. Double-sided foam tape is suitable for applications where moisture resistance is required because of its good resistance to humidity, mild acids, oil and grease. Foam mounting tape has excellent conformability and compressibility on wood, glass, cement, paper, plastic, metal surface. Acrylic foam tape adheres well to textured and irregular surfaces. Our foam adhesive tape can be easily die-cut.
PE Foam Tape Applications:
- Used for mounting nameplates, signs, small die cast parts, mirrors, maps, etc.
- Used for sound and vibration dampening in business machines, industrial equipment, electronic component packaging and glass panel mounts, seals, gaskets, etc.
Double-sided Foam Tape Details:
| Thickness | 0.3 mm to 12 mm |
| PE foam density | 34-167 kg/m 2 or custom |
| Jumbo Roll Width | 1040 mm, 1240 mm |
| Jumbo Roll Length | 1 m to 300 m or custom |
| Log Roll Size | custom |
| Foam Colors | black, white, grey, green, red, blue, etc. |
| Releasing Liner | film/paper colors: red, green, blue, white, yellow, etc. |
| Paper Core size | 76 mm, 38 mm available |
Foam Mounting Tape TDS (For 1.0 mm):
| Description | Test result | Unit | Test method |
| Total thickness | 1±0.005 | mm | GB/T 7125-1999 |
| Density of backing | 67 | g/m | / |
| Initial tack | <150 | cm | GB/T 4852-2002 |
| Peel adhesion | >12 | N/25 mm | GB/T 2792-1998 |
| Holding power | >24 | hrs | GB/T 4851-1998 |
| Temperature range | -20∼120 | ℃ | / |
Foam Tape Structure:
